Digital Vibration Controller Electric Vibration Test Bench OEM
Product description:

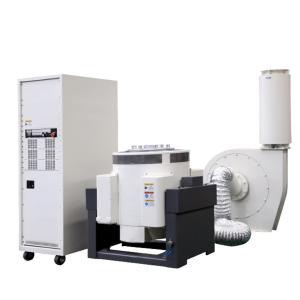

GSKA01 series is an air-cooled electric vibration test system,
which has many advantages such as wide frequency, excellent
performance, high reliability, small footprint, convenient movement
and simple operation. The capabilities of sinusoidal, random,
classical shock and compound vibration tests all meet the relevant
test standards.
High first-order resonance frequency: the optimal design of the
moving ring skeleton structure, especially the weak links such as
the traditional structure of the moving ring skeleton force
transmission Angle plate, effectively improves the force
transmission stiffness. The composite fixing method of adhesive
joint and screw connection is adopted to improve the stiffness of
the winding and the first-order common vibration frequency of the
moving coil.
High reliability of moving coil winding: the new structure and new
technology of the strengthening ring of the original moving coil
winding greatly improve the reliability of moving coil winding in
high thrust, high acceleration vibration, impact and high
temperature environment;
Capable of horizontal and vertical testing: Tables with horizontal
slides can be used for horizontal and vertical testing. The
switching method of two directions is simple and easy to flip;
Full function digital vibration controller: with sine, random, sine
plus random, random plus random, classical shock and shock response
spectrum test functions.
Technical Specifications:
Model Parameters | GSKA 70－5K | GSKA 70－1T | GSKA 70－2T | GSKA 70－3T | GSKA 70－4T | GSKA 70－5T | GSKA 70－10T | GSKA 70－20T | GSKA 70－30T | GSKA 70－40T | GSKA 70－50T |
Force (KN) | 5 | 10 | 20 | 30 | 40 | 50 | 100 | 200 | 300 | 400 | 500 |
| Vibration Direction | Vertical, Horizontal |
Frequency Range (Hz) | Sine | 0.1～200 | 0.1～200 | 0.1～200 | 0.1～150 | 0.1～150 | 0.1～130 | 0.1～130 | 0.1～100 | 0.1～100 | 0.1～80 | 0.1～80 |
| Random | 0～300 | 0～300 | 0～300 | 0～300 | 0～200 | 0～200 | 0～200 | 0～150 | 0～150 | 0～150 | 0～150 |
| Max. Load (kg) | 100 | 200 | 400 | 600 | 800 | 1000 | 1500 | 3500 | 5000 | 7000 | 8000 |
Table Size (mm) | 600×
600 | 800×
800 | 1000×
1000 | 1200×
1200 | 1500×
1500 | 1800×
1800 | 2000×
2000 | 2500×
2500 | 3000×
3000 |
Max. Displacement (P-P) (mm) | 100 |
| Max. Velocity (m/s) | 1 | 0.6/1 | 0.6 |
Max. Acceleration (g) | 5 |
Weight (kg) | 1500 | 1800 | 2000 | 3000 | 3500 | 4000 | 5000 | 6000 | 8000 | 9000 | 10000 |
| Installation Condition | Working Environment | Temperature 0～40℃,Humidity ≤80% (no condense) |
Power Supply (kVA) | AC380V
±10％ 18KVA | AC380V
±10％
22KVA | AC380V
±10％ 30KVA | AC380V
±10％ 40KVA | AC380V
±10％ 45KVA | AC380V
±10％ 55KVA | AC380V
±10％
90KVA | AC380V
±10％ 110KVA | AC380V
±10％
130KVA | AC380V
±10％
150KVA | AC380V
±10％
170KVA |
| Floor | Foundation-free, the cement floor shall be leveled and the working
diatance of 800 ~ 1000mm shall be reserved around the equipment |
| Cooling Method | Air Cooled | Water Cooled |
| Standards | ISTA1~7 MIL-STD-810 IEC 60068-2 ASTM D4728 |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
