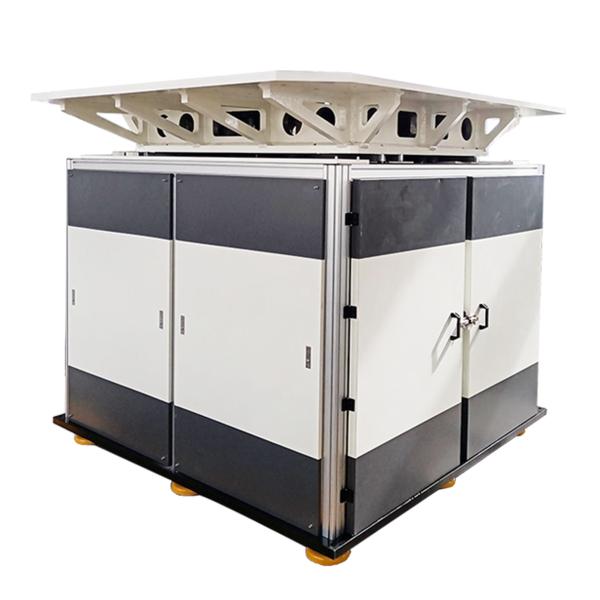

Gas Drive Pneumatic Bidirectional Vertical Shock Test System OEM
Product description:
GSKA17 series pneumatic bidirectional vertical shock test system is
the novel designed and developed for large specimens that cannot or
are not easy to turn over, especially adopt for battery testing. It
can complete vertical upward and downward shock test in one test
stand without moving the UUT.
GSKA17 series pneumatic bidirectional vertical shock test system is
the novel designed and developed for large specimens that cannot or
are not easy to turn over, especially adopt for battery testing. It
can complete vertical upward and downward shock test in one test
stand without moving the UUT.
Pneumatic drive, no pollution to the environment
One machine with multiple functions, one clamping, to complete the
upward and downward shock and bump tests, with high efficiency
Built-in pneumatic brake mechanism, safe and reliable
One-machine management for control and measurement, convenient
operation
Air springs and dampers are used to reduce vibration, and the
installation is free of foundation
Technical Specfications:
Model Parameters | GSKA17－50 | GSKA17－100 | GSKA17－200 | GSKA17－500 | GSKA17－800 | GSKA17－1000 | GSKA17－2000 |
Rated Load (kg) | 50 | 100 | 200 | 500 | 800 | 1000 | 2000 |
Table Size (mm) | 500×500 | 600×600 | 800×800 | 1000×1000 | 1200×1200 | 1500×1500 | 2000×2000 |
Shock Direction | Downward |
Peak Acc. (G)
| Half-Sine | 10-750 | 10-600 | 10-450 | 10-300 | 10-250 | 10-200 | 10-150 |
Post-Peak Sawtooth | 10-200 | 10-200 | 10-100 | 10-100 | 10-100 | 10-100 | 10-100 |
Trapezoid | 15-200 | 15-200 | 15-100 | 15-100 | 15-60 | 15-60 | 15-50 |
Pulse Duration (ms) | Half-Sine | 1.5-60 | 2-60 | 2.5-60 | 4-60 | 4.5-60 | 5-60 | 6-60 |
Post-Peak Sawtooth | 3～18 | 6～18 |
Trapezoid | 3～18 | 3～18 | 6～18 |
Shock Direction | Upward |
Shock Wave | Half Sine Wave |
Shock Peak Acceleration (G) | 15-350 | 15-300 | 15-200 | 15-150 | 15-100 | 15-100 | 15-75 |
Shock Pulse Duration (ms) | 3.5-60 | 3.5-60 | 4-60 | 4.5-40 | 5.5-60 | 5.5-60 | 6-60 |
Overall Dimension (mm) | 1250×
1250×
1600 | 1250×
1250×
1600 | 1300×
1300×
1700 | 1350×
1350×
1750 | 1550×
1550×
1750 | 1650×
1650×
1850 | 2000×
2000×
1900 |
Weight (kg) | 3000 | 3200 | 3500 | 4500 | 5000 | 6000 | 8000 |
Power | AC220V 土10%,50Hz |
Air Source | ≤1MPa |
Installation Conditions | No special foundation is required for installation, but a smooth
cement floor is required. 800 ~ 1000mm working distance are
reserved around the equipment |
Working Environment | Temperature range 0 ~ 40℃; Humidity ≤ 80%, non-condense |
Standards | MIL-STD-810F IEC68-2-27
|
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
