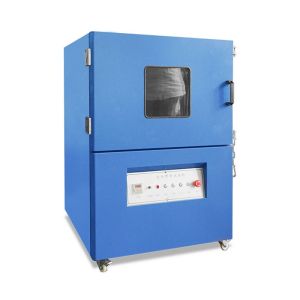

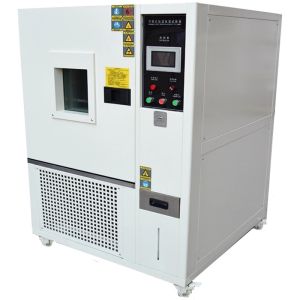

Multi-Role Benchtop Temperature Chamber LED Touch LCD Screen
High Low Temperature Humidity Pressure Altitude Test Chamber:
An altitude chamber combines temperature and low-pressure altitude
with optional humidity to test basic components or sub-assemblies
for a variety of industries, such as defense, aerospace, avionics,
automotive, electronics and others.
Here are two common appliations of an altitude test chamber :
- Testing of avionics or other aerospace equipment to simulate
actual conditions it might experience
- Simulation of high-altitude conditions like might be found in
mountainous regions and plateau
And such an altitude test chamber is especially important for
defense and aerospace applications where pressure and vacuum
conditions are even more intense.
We can provide custom-built altitude chambers for simultaneous
testing of temperature, low-pressure altitude and optional humidity
conditions.
Our altitude/temperature and altitude/temperature/humidity chambers
offer performance flexibility and reliablility for today's
mixed-environment testing requirements with an overall temperature
range of -70°C to +150°C, optional humidity capabilities of 20% to
98% RH and altitude up to 200,000 feet.
Characteristics:
1. Environment Test High Low Temperature Humidity Pressure Altitude
Test Chamber Main box structure internal pressure structure
2. Environment Test High Low Temperature Humidity Pressure Altitude
Test Chamber Control system of temperature and humidity: fan,
heater, evaporator,h umidifier
3. Refrigeration mode: mechanical compression binary refrigeration
system
4. Vacuum units: rotary vane vacuum pump
Product Paramenters:
Pressuren Range | Atmospheric pressure～0.5kpa |
Temperature Uniformity | ≤2℃ |
Temperature Fluctuation | ±0.5℃ |
Ramp up Rate | -25℃～100℃≤50min |
Ramp Down Rate | 25℃～-20℃≤60min |
Depressurization Time | (Atmospheric pressure～0.5kpa)≤45min |
Inner material | Mirror Stainless Steel-SUS#304 |
Exterior Material | A3 Steel board with powder coated |
Observing Window | 1 PC(215×275mm)/(395*395mm); |
Sensor | PT-100Ω Dry &Wet Bulb |
Insulation way of Chamber | Glass fiber cotton or polyurethane foam |
Heater | Nickel-chromium naked wire heating |
Optional accessories:
1, Low Humidity and Dehumidifying sytstem.
2, Inner glass door with manual operating ports.
3, Temp./Humi.Recorder.
4, Pure water treatment device
5, RS-485 interface can be linked to Personal computer(PC) and
achieve multi-level control & recording software management.
6, Liquid nitrogen(LN2)/Liquid Carbon Dioxide(LCO2) fast
cooling-down system.
We keep good quality and competitive price to ensure our customers
benefit ; We respect every customer as our friend and we sincerely
do business and make friends with them,no matter where they come
from. Each batch of parts is done quality sampling inspection
before into the warehouse, and Each product before delivery is
tested by the national authoritative third-party inspection agency
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
