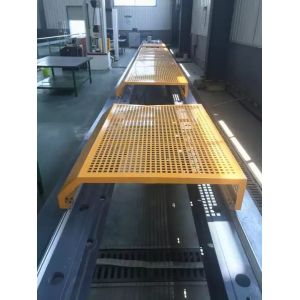

200 Ton Electro-Hydraulic Servo Horizontal Material Testing Machine
Can Be Customized
Technical solutions:
The teste machine adopts a frame structure weld by integral steel
plates of a frame, a 2000KN single-rod double-acting oil cylinder
is installed in an oil cylinder seat and is connected to a movable
cross beam through a load sensor, a reverse frame for apply test
force is formed by that movable cross beam, the oil cylinder, two
pull rods and a front pull head seat, a movable rear pull head seat
is installed in the force application frame, the front pull head
seat and the rear pull head seat are respectively connected with a
sample, and a reaction frame is driven by the oil cylinder to apply
test force to the sample,According to the specification and length
of the sample, the position of the movable slider seat can be
adjusted step by step to adjust the stretching space. The sample is
connected by a bolt type. The oil passage adopts a flow control
valve to adaptively servo control the test process. The
high-precision load sensor measures the force. The computer screen
displays the test force and the test curve. The test data are
automatically processed according to the requirements of the test
method. The machine is suitable for stretching and breaking test
force of flexible samples such as steel wire ropes, shackles,
slings, etc.
Technical Parameters:
| MODEL | WAL-3000 |
| Maximum load | 3000kN |
| Structure | Single rod double-acting cylinder frame structure |
| Drive control mode | Computer controlled electro-hydraulic servo control |
| Test type | Tensile strength test / Loading hold test |
| Overload protection | 105% overload protection |
| Noise of the whole machine | no more than 70dB |
| Accuracy of load indication | better than ±1% of indicated value |
| Load resolution | 500000 yards, and the whole resolution remains unchanged |
| Load control accuracy | Class 1.0 (class 0.5 is optional) |
| Force value measuring range | 2%~100%F·S (the whole process is not divided into files) |
| Stress control accuracy | better than ±1% of the indicated value |
| Accuracy of displacement indication | better than ±0.5% of indication |
| Displacement resolution | 0.001mm |
| Displacement control accuracy (speed) | better than ±0.5% of the indicated value |
| Piston moving speed range | 0-100mm/min full load stepless speed regulation |
| Piston stroke | 500mm-1500mm |
| Maximum Tension space | 4000mm-30000mm |
| Tension space adjustment interval | 500mm |
| Tension space width (inner clear width) | 600mm |
| Height of the center of the Tension space | 600mm |
| Total motor power | 4.0 KW
|
Customer Support Services:
1. Installation
2. Training (Training customer employees)
3. Calibration
4. Preventative maintenance
5. Replacement parts
6. Assistance via phone or internet
7. On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO
requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again
with the machine. Then do own factory calibration or third party
calibration(as customer requirements). Check and test all the
details and then arrange packing.
Deliver the products in confirmed shipping time and inform
customer.
